製品詳細
Details

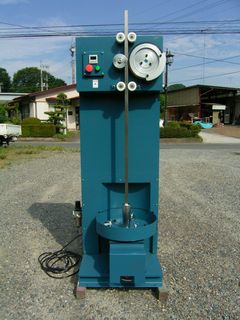

Automatic Mechanical Compactor

Automatic Mechanical Compactor
Unit is designed to automatically compact soil samples rapidly and to produce the accurac hand compaction.6"Mold use

仕様Specification

Pull up method of weight Rubber pulley or Gear (Soil) Chain or Crank (Asphalt)
Table movement Air or Cam (Soil)
Weight 4.5kg and 2.5Kg (Soil) 4.5Kg (Asphalt)
Fall height 45cm and 30cm (Soil) 45.7cm (Asphalt)
Fall number of times 36/min (Soil) 70/min (Asphalt)
Motor 0.4Kw AC100V or AC200V
Weight 120Kg~(soil) 180Kg (Asphalt)
Marshall Automatic Mechanical Compactor (6”Mold use)
Marshall Automatic Mechanical Compactor (6”Mold use)
 Φ300mm use Automatically compact soil samples rapidly
Φ300mm use Automatically compact soil samples rapidly
Marshall Automatic Mechanical Compactor (4
Marshall Automatic Mechanical Compactor (4
Mashall Automatic Mechanical Compactor Sngle Specimen
Mashall Automatic Mechanical Compactor Sngle Specimen
Marshall Automatic Mechanical Compactor Double Specimen
Marshall Automatic Mechanical Compactor Double Specimen
Φ150・Φ100Use automatcally comact soil samples rapidly
Φ150・Φ100Use automatcally comact soil samples rapidly
